Decoding EdgeAuth tokens in the Portal

EdgeAuth tokens can be analyzed in the Portal via the Diagnose tab on a Channel or Room page. This can be used for any Phenix EdgeAuth tokens, whether created via the Portal or the EdgeAuth library.

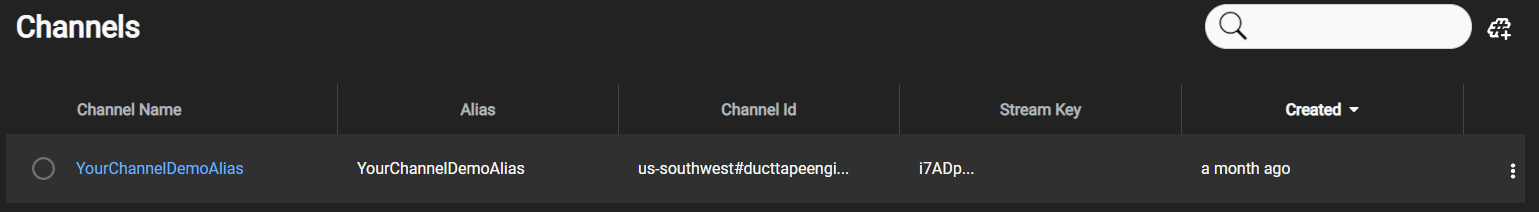

Access the token decoding tab by clicking on a Channel or Room Name in the Channel or Room list.

Click on the "Diagnose" option to the right, which will show the Diagnose page, which includes the EdgeAuth token analysis tool.

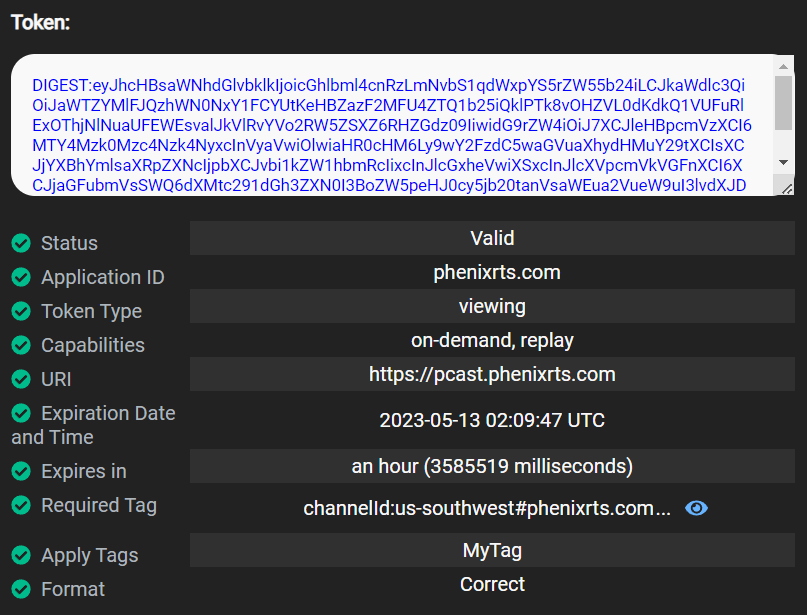

Paste the token to be analyzed into the text box, including "DIGEST:". If the token is valid, the result will appear similar to the following image.

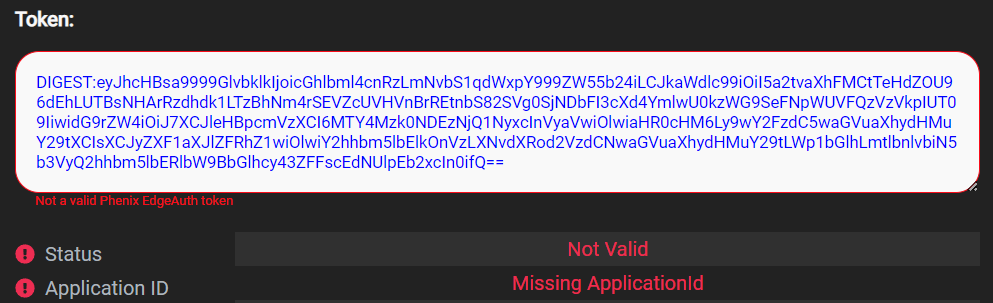

If a token is not valid, the Portal will indicate that and will show details about the reason the token is not valid.

For example a missing Application ID:

Or an expired token:

If a token is valid but is for a different Application ID, the Portal will indicate the Application ID that was found as well as the Application ID that was expected:
